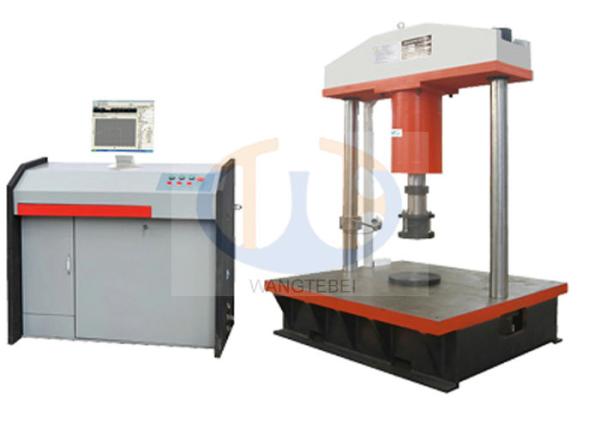

1. Product name: computerized manhole cover compression testing machine
2. Introduction of testing machine
The manhole cover compression testing machine can be used to test the compression properties of cast iron manhole cover, composite material manhole cover, and steel reinforced concrete.
The manhole cover compression testing machine adopts computerizing, high precision electro-hydraulic servo valve to drive precise hydraulic cylinder and then realize the auto control to the test force, displacement, and deformation, etc.
3. Test standard
BS EN 124 Gully tops and manhole tops for vehicular and pedestrian areas-Design requirements, type testing, marking, quality control
4. Main technical parameters of testing machine
| 1 |
Max. test force |
600kN |
1000kN |
1500kN |
| 2 |
Measuring range |
2%-100%FS |
2%-100%FS |
2%-100%FS |
| 3 |
Precision |
1% |
1% |
1% |
| 4 |
Compression space |
0-350mm |
0-350mm |
0-350mm |
| 5 |
Size of working table |
1200X1400mm |
1200X1400mm |
1400X1500mm |
| 6 |
Diameter of upper pressure head |
250mm |
250mm |
250mm |
| 7 |
Stroke of piston |
150mm |
150mm |
150mm |
| 8 |
Deformation measuring range |
0-10mm |
0-10mm |
0-10mm |
| 9 |
Deformation resolution |
0.01mm |
0.01mm |
0.01mm |
| 10 |
Loading speed |
0-40kN/s |
0-40kN/s |
0-40kN/s |
| 11 |
Dimension of main machine(cm) |
150X140X200 |
150X140X200 |
160X150X205 |
| 12 |
Dimension of control cabinet(cm) |
110X70X94mm |
110X70X94mm |
110X70X94mm |
| 13 |
voltage |
380V, 50Hz, 1.5kW |
380V, 50Hz, 1.5kW |
380V, 50Hz, 1.5kW |
| 14 |
Weight of main machine |
2800kg |
2800kg |
3000kg |
Packing
1. Packing Materials: Plywood Case metting export long transport requirement.
2. Shiping Time: Shipped within 15-20 days after payment.
3. Shipping Way: Shipped by sea or air is available.
1. Why Choose Us?
>Coaxial degree of good host: Tensile test to avoid the impact of lateral force to ensure a very high test success rate
>High rigidity of the host: low failure rate, good reliability, long service life
>Measurement and control hardware: sensors, extensometers, photoelectric encoders are brand-name configuration. High accuracy, good year stability.
>Measurement and control system software: After the National Steel Materials Testing Center review. To ensure that the export data qualified, the success rate of comparative test.
>Hydraulic system servo pump patented technology: closed-loop control of high precision. Good reliability
>We promise, after-sales service for 12 months, promptly and promptly deal with all the problems aftermarket.
2. Are you a factory?
>Yes,Factory+trade,many years focusing on test instruments field.
3. What's the product delivery time?
>Delivery time from 10 days-15 days according to the products
4. What's your payment terms?
>We accept T/T, L/C or Western Union.
5. What's your terms of trade?
We accept EXW, FOB, CNF, CIF, and so on.
